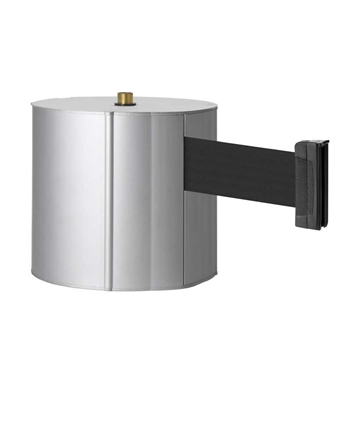

JetTrac Replacement Belt Mechanism
JetTrac Replacement Belt Mechanism

: $630.00
: $375.00
Savings: $255.00

Price with Selected Options: $375.00


Free Shipping
Availability:: Lead Time: 3 Business Days
Product Code: BLV-JMECH65-SA

Select Belt Color

Black (BK)
Fluorescent Yellow (FY)
Select Belt End


Standard
S-Hook
J-Hook
Warranty

2 Year Extended Warranty - Service Contract [Add $99.00]

Qty:
Description


JetTrac Replacement Belt and Housing

Belt End Options:

Jettrac Belt End Options

JetTrac Mechanism Extended Warranty - "Service Contract" (Total of 2 years)

The JetTrac product comes with a limited one year warranty covering the post and platform (if applicable), belt and belt mechanism from defects in materials or workmanship, and for failure to perform as specified.

This (required) 1 year extended warranty - "service contract" covers functionality of the mechanism unit only, including the replacement and refurbishment of any necessary internals of the mechanism and belt-end for an additional 1-year term after the initial 1-year Limited Warranty expires, providing a total of 2 years of coverage from the original date of purchase.

Note: The belt, the mechanism casing and the JetTrac cart, platform and/or post are not covered by the extended warranty. The Extended Warranty is void where product has been subjected to abuse or unintended use, or has been altered, modified, misused, vandalized, or improperly installed. There are no warranties expressed nor implied which extend beyond the description herein.

JetTrac® User Guide

user-guide-1

1. Transport the JetTrac by tilting it back on its wheels and pushing it towards its destination. Do not pull the JetTrac.


user-guide-2

2. Pull the belt out with gentle, even resistance.


user-guide-3

3. Loop the belt end through a stationary object and secure the belt end back onto itself to create a temporary barricade.


user-guide-4

4. When finished, hold the belt end during retraction with gentle, even resistance.


user-guide-5

5. DO NOT drag the JetTrac after securing the belt end.


user-guide-6

6. DO NOT release the belt end with unassisted retraction. DO NOT drop the belt end.

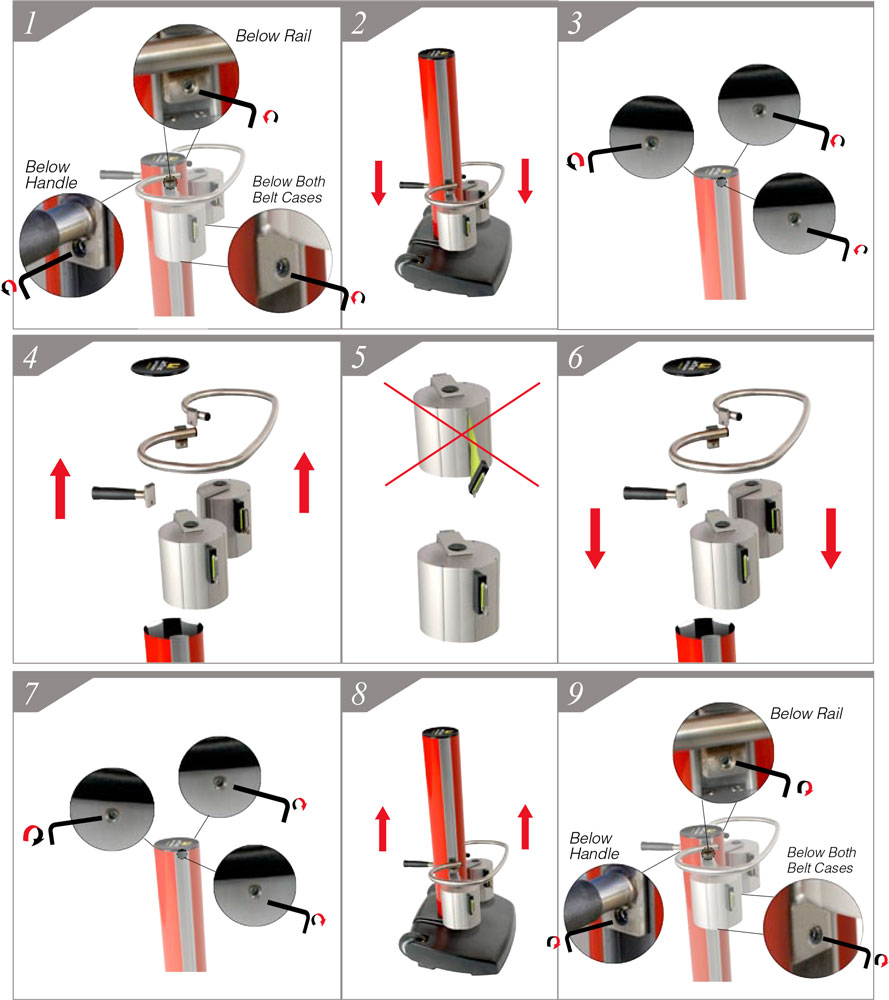

JetTrac Belt Case Replacement Guide

1. Loosen screws with a 5mm Allen Wrench.

2. Push down Case, Handle, and Rail assembly.

3. Loosen small screws on all three sides of post's groove with a 2mm Allen Wrench to remove lid.

4. Remove Lid, Rail assembly, Handle, and Belt Cases.

5. Switch non-functional Belt Case with a fully functional Belt Case.

6. Slide Belt Cases, Handle and Rail assembly down the grooves of the post and place lid on top of post.

7. Tighten small screws to secure lid.

8. Raise Handle, Rail assembly and Cases to desired height.

9. Tighten screws to secure Rail assembly, Handle and Cases.

jettrac belt case replacement guide

Catalog: JMECH65/SA/BK/BE, JMECH65/SA/BK/S, JMECH65/SA/BK/J, JMECH65/SA/FY/BE, JMECH65/SA/FY/S, JMECH65/SA/FY/J
