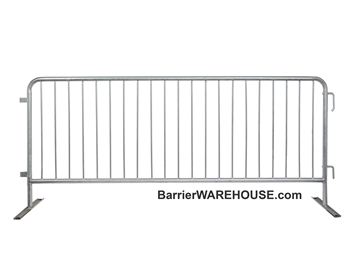

Galvanized Steel Barricades

The Barricade is built from heavy gauge steel and is hot-dipped galvanized inside and out for long-term weather resistance. Frames are made from 1.5" OD 16 gauge steel tubing, while uprights are made from 1/2" OD 16 gauge steel tubing. Uprights are fully inserted into the frame before welding, providing extraordinary strength. Choose from two foot systems: a bridge foot for uneven surfaces such as grass and a flat foot for smooth surfaces such as tarmac and where pedestrian traffic demands the minimum trip hazard. The barricades interlock using the industry standard hook and half-loop fastening system.

FEATURES

• Heavy duty 16 gauge steel construction
• Hot-dipped galvanized for outdoor use
• Interlocking hook & loop system for easy set up
• Choice of 2 base systems
• Interchangeable base/foot for easy storage and repairs
• Available in 3 finishes: galvanized steel, pvc-coated black and orange.

SPECIFICATIONS

Height: 43"
Length: 8'4"
Weight: 44lbs (Bridge & Flat Feet)

SHIPPING DIMENSIONS

Max Pallet Loading: Galvanized 50, Black/Orange 40
Dimensions: W41" x L 96" x H72" (Qty 50)
Empty Pallet Weight: 125lbs
